In order to enable customers to use their own industry, we tell you about the drum gear coupling products suitable for use in those industries?

Drum gear couplings have been widely used in many industries in China, from high speed turbine sets to medium and low speed heavy metallurgy, mining, hoisting equipment and other applications, has also formed their own standard series, and has accumulated rich experience in design and manufacturing.

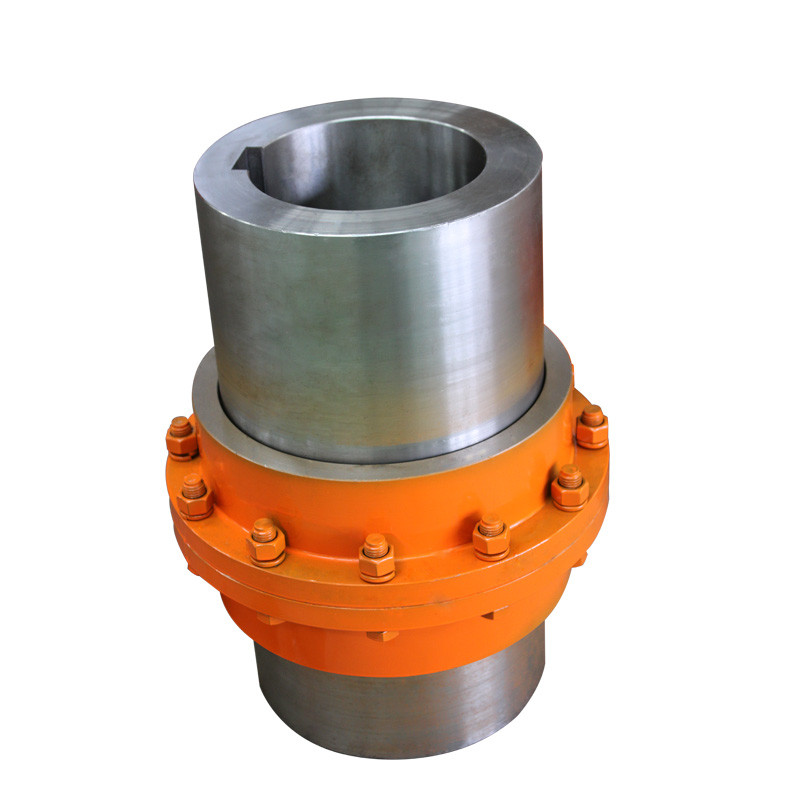

Drum gear coupling is a new type of gear coupling developed on the basis of straight gear coupling, absorbing foreign technology. It is composed of the outer gear sleeve with the tooth thickness of the waist drum shape and the inner gear ring which is matched with the meshing pay connection of the two shafts, which is suitable for heavy load and need axis displacement compensation of the two shaft drive. In general, it is impossible for the two shafts connected to be concentric and continue to maintain a concentric state in the process of operation, because of the installation error, bearing wear, stress deformation, foundation subsidence and so on, resulting in radial and angular displacement of the axis. The coupling of drum gear has the characteristic of compensating the above displacement, reducing the additional load caused by axis displacement, improving the working stability and reliability of the transmission device, thus prolonging the service life of the transmission device.
