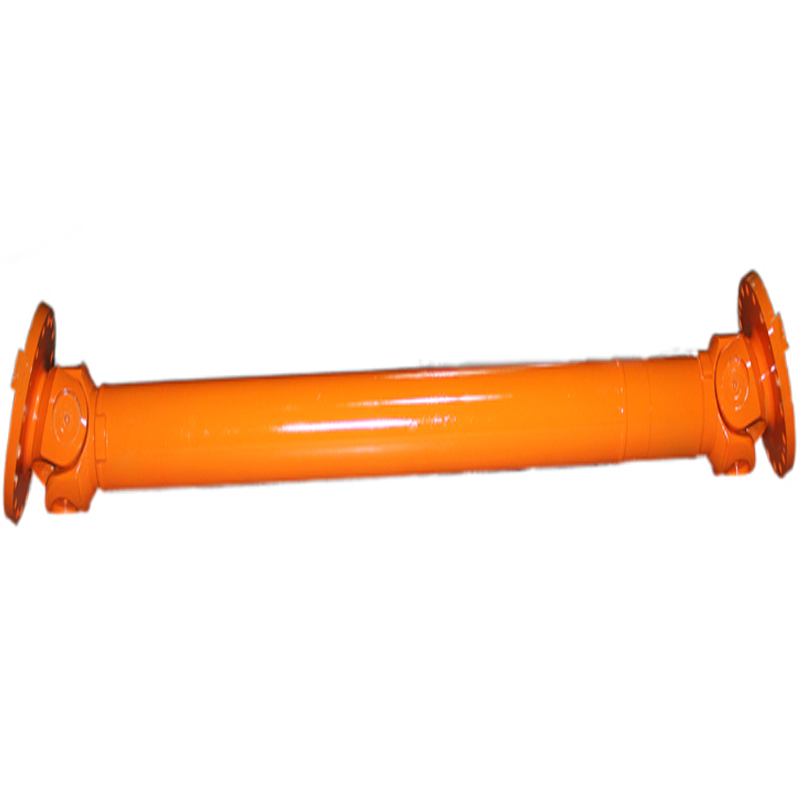

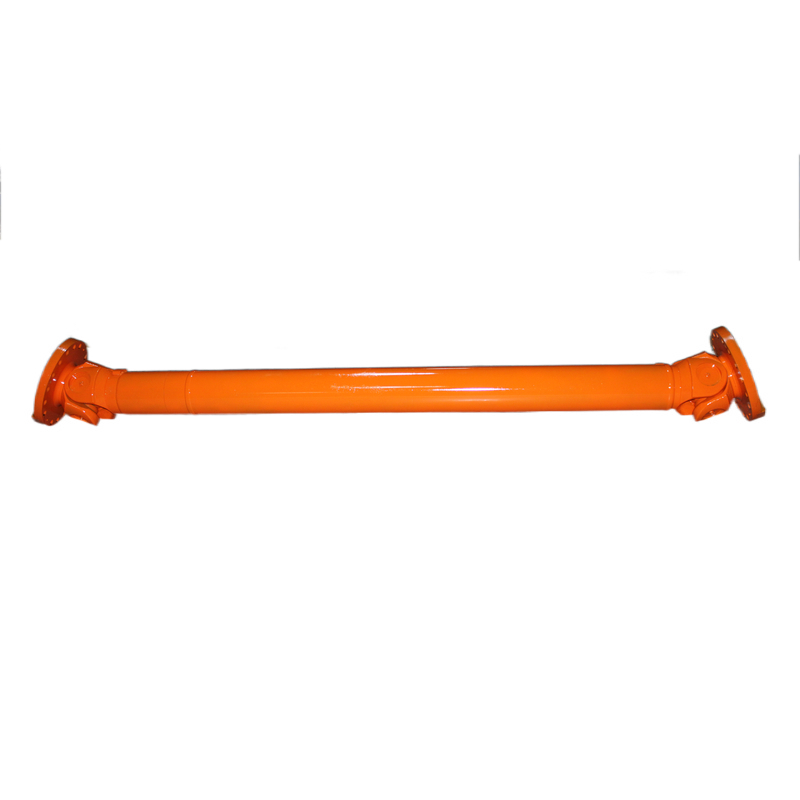

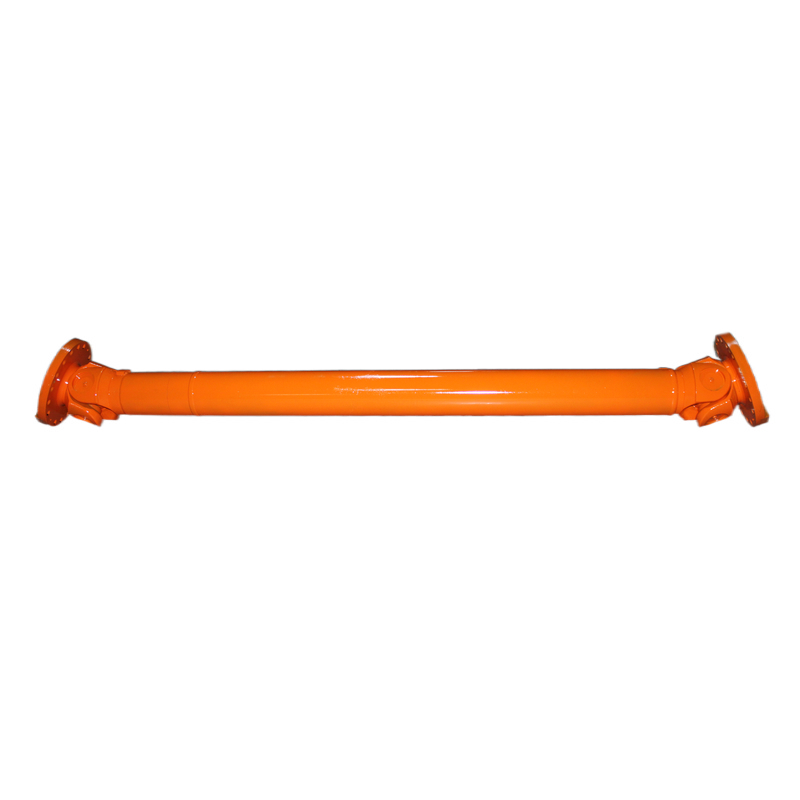

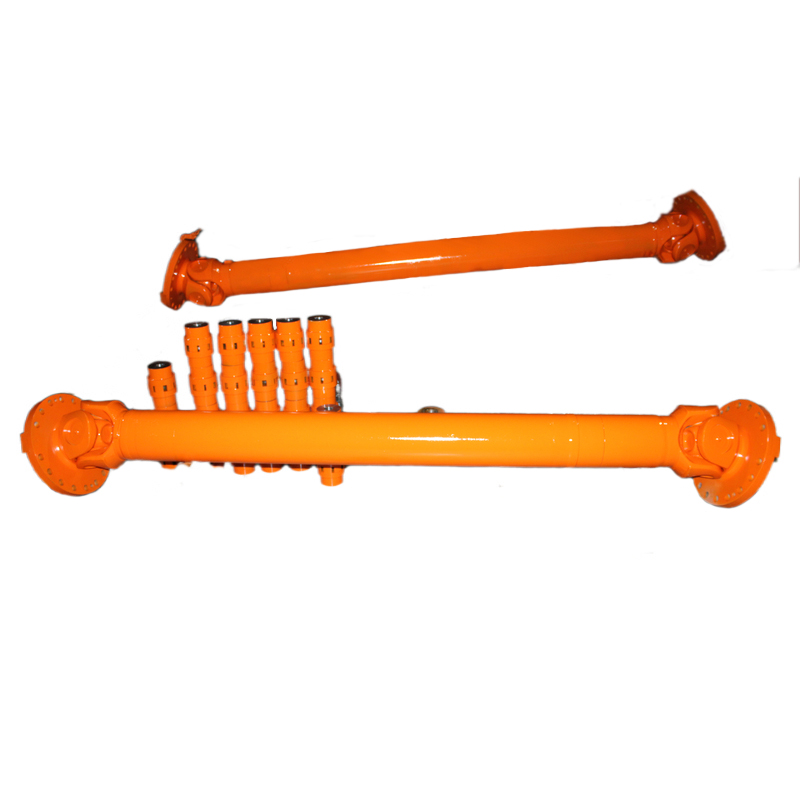

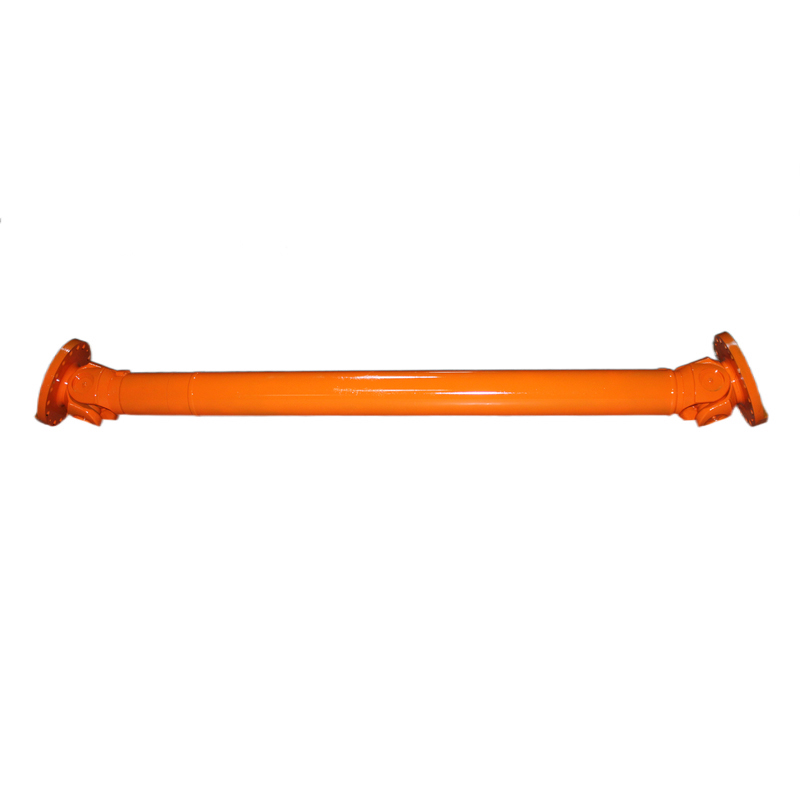

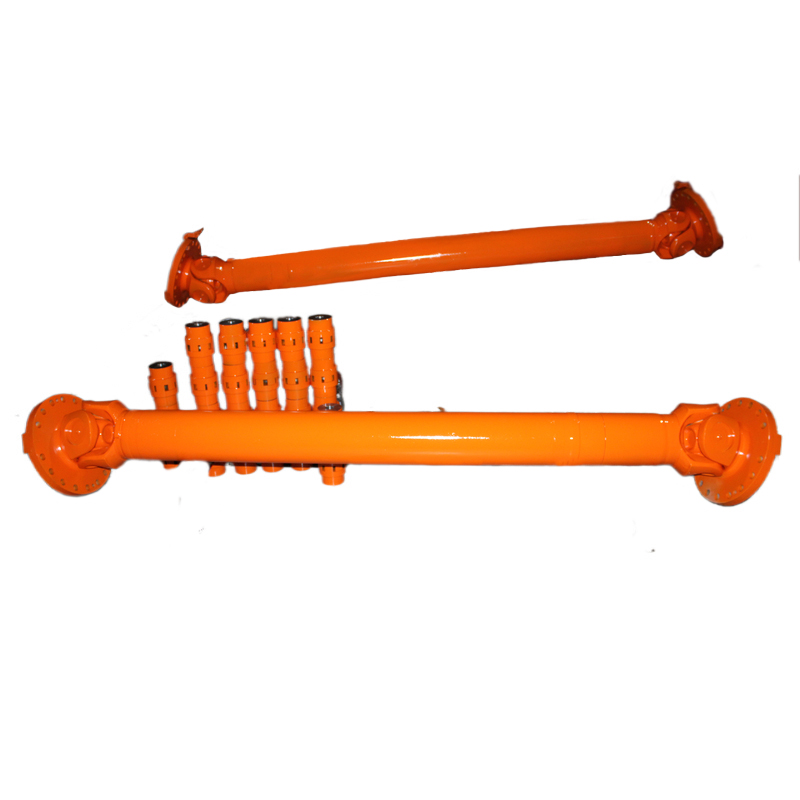

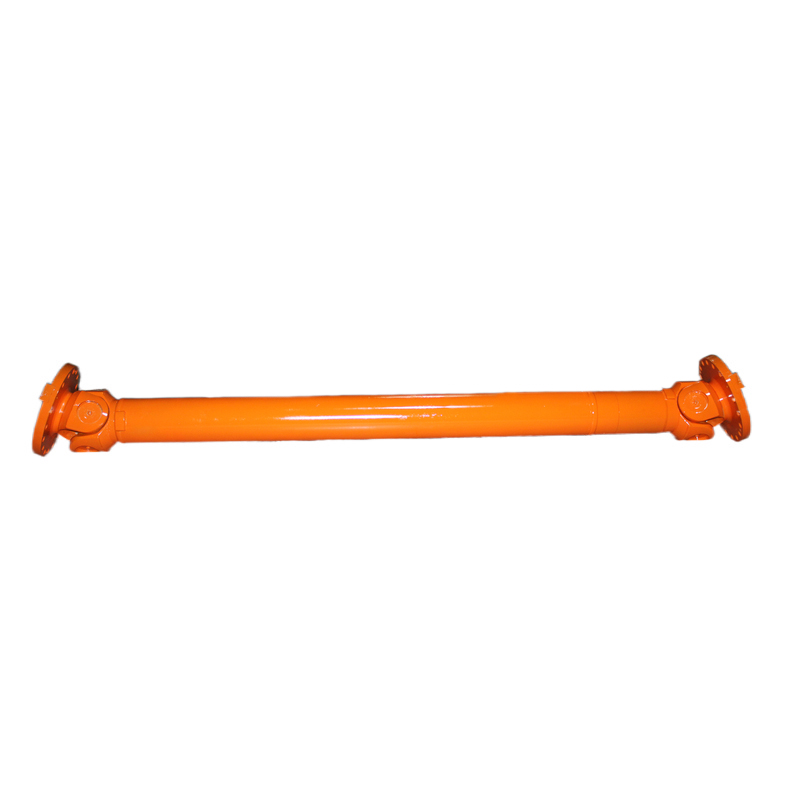

Universal Coupling Swc440

Rongxing Driving is a professional R&D and manufacturer of Universal Coupling , swc universal shaft coupling . and has won unanimous praise from the majority of users.

INQUIRY

Product Details

Swc Ch Type Long Telescopic Welding Integral Fork Head Cross Shaft Universal Coupling Basic Parameters And Main Dimensions (GB5513-91)

Model	Turning Diameter D (mm)	Rated RorqueTn (kN*m)	Fatigue Torque T. (kN,m)	Axis Angle(°)	Expansion Amount U (mm)	Size(mm)										Moment nertia(kg・m2)		Quality(kg)
						Ln	D. (jsll)	d2 (H7)	D,	L	n-d	k	t	b(h9)	g	Ln	WK lOOnin	y	Each Growth lOOnm
SWC180CH1	180	12.5	6.3	W25	200	925	155	105	114	110	8-17	17	5			0. 181	0. 0070	74	2.8
SWC180CH2					700	1425										0.216		104
SWC225CH1	225	40	20	W15	220	1020	196	135	152	12(	8-17	20	5	32	9	0. 561	0. 0234	132	4.9
SWC225CH2					700	1500										0. 674		182
SWC250CH1	250	63	31.5	W15	300	1215	218	150	164	140	8-19	25	6	40	o r	1.016	0. 0277	190	5.3
SWC250CH2					700	1615										1. 127		235
SWC285CH1	285	90	45	<15	400	1475	245	170	194	lti(	8-21	27	7	40	15	2. 156	0. 0510	300	6.3
SWC285CH2					800	1875										2. 360		358
SWC315CH1	315	125	63	W15	400	1600	280	185	219	180	10-23	32	8	40	15	3.812	0. 0795	434	8.4
SWC315CH2					800	2000										4.150		514
SWC350CH1	350	180	90	W15	400	1715	310	210	267	194	10-23	35	8	50	16	7. 663	0. 2219	672	15.0
SWC350CH2					800	2115										8. 551		823
SWC390CH1	390	250	125	W15	400	1845	345	235	267	215	10-25	40	8	70	18	12. 730	0. 2219	817	15.0
SWC390CH2					800	2245										13.617		964
SWC440CH1	440	355	180	<15	400	2110	390	255		2fi(	16-28	42	10	80	20	22. 540	0. 4744	1312	21.7
SWC440CH2					800	2510										24.430		1537
SWC490CH1	490	500	250	W15	400	2220	435	275	必	270	16-31	47	12	90	22.5	33. 970	0. 4744	1554	21.7
SWC490CH2					800	2620										35. 870		1779
SWC550CH1	550	710	355	W15	500	2585	492	320	12()		16-31	50	12	100	22.5	72. 790	1. 3570	2585	34
SWC550CH2					1000	3085										79. 570		3045
