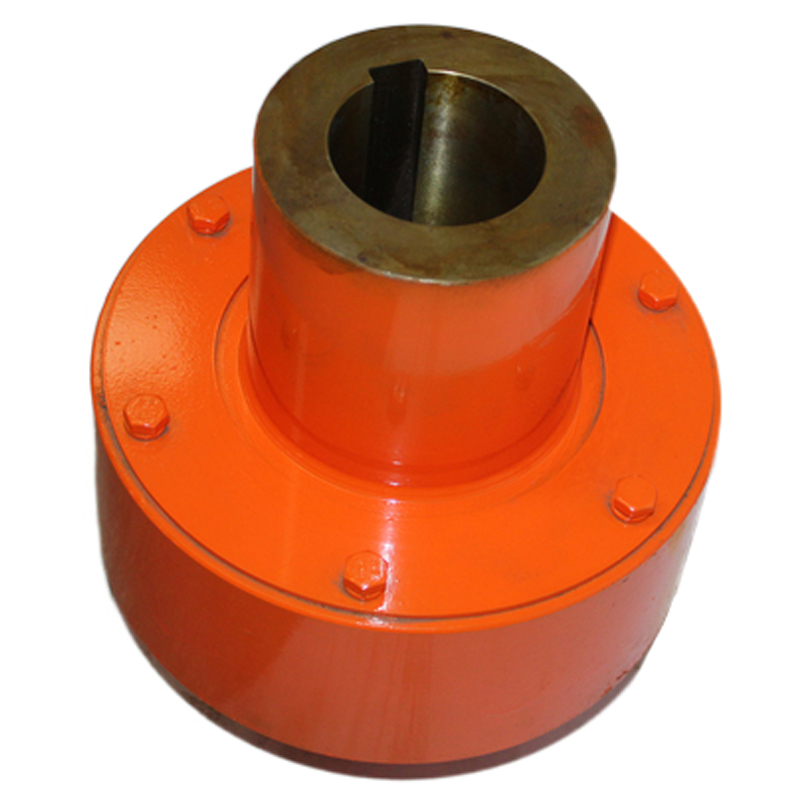

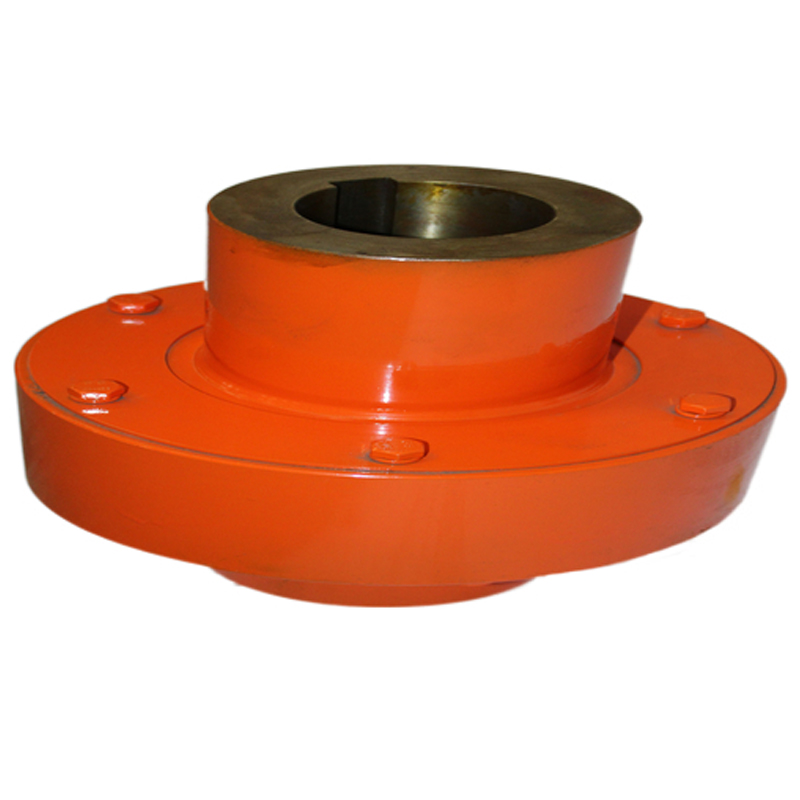

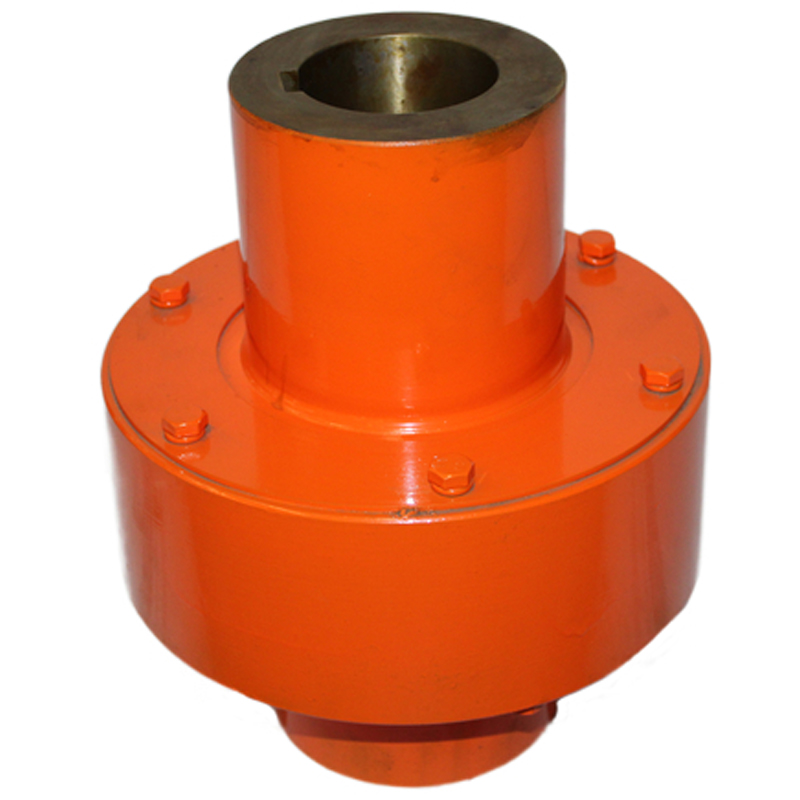

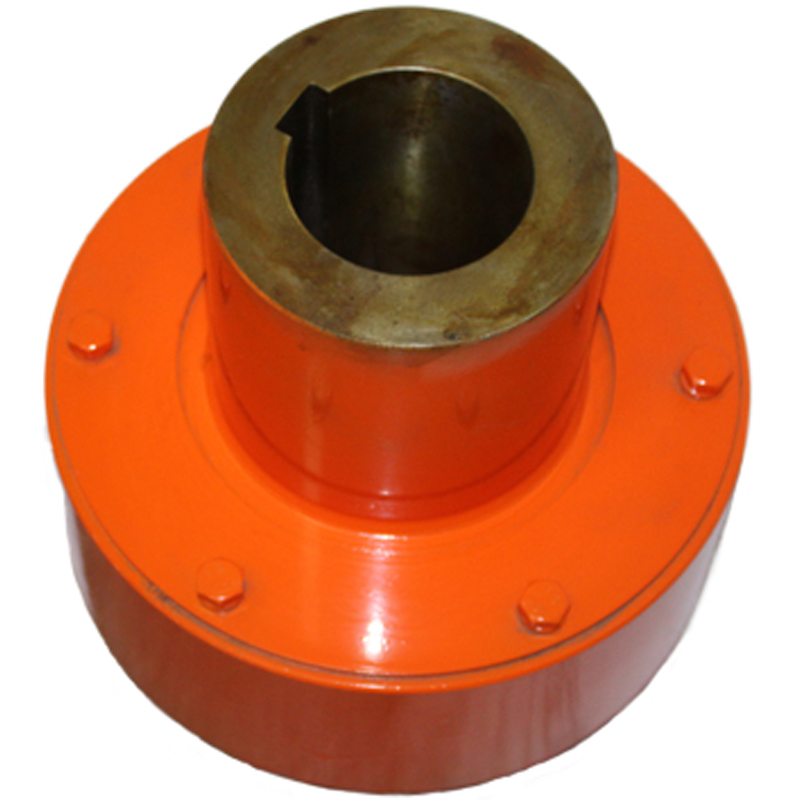

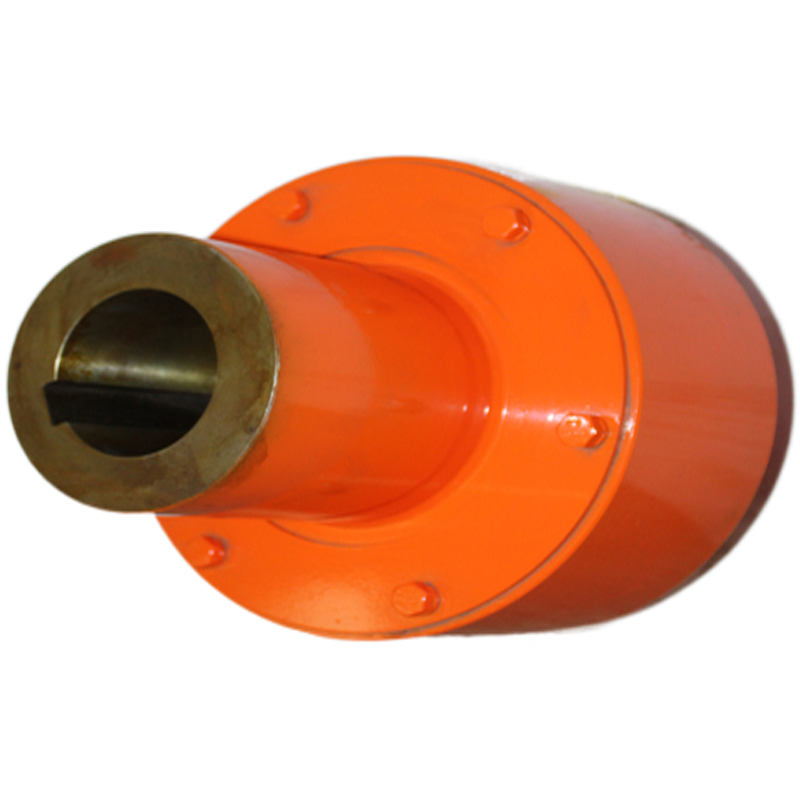

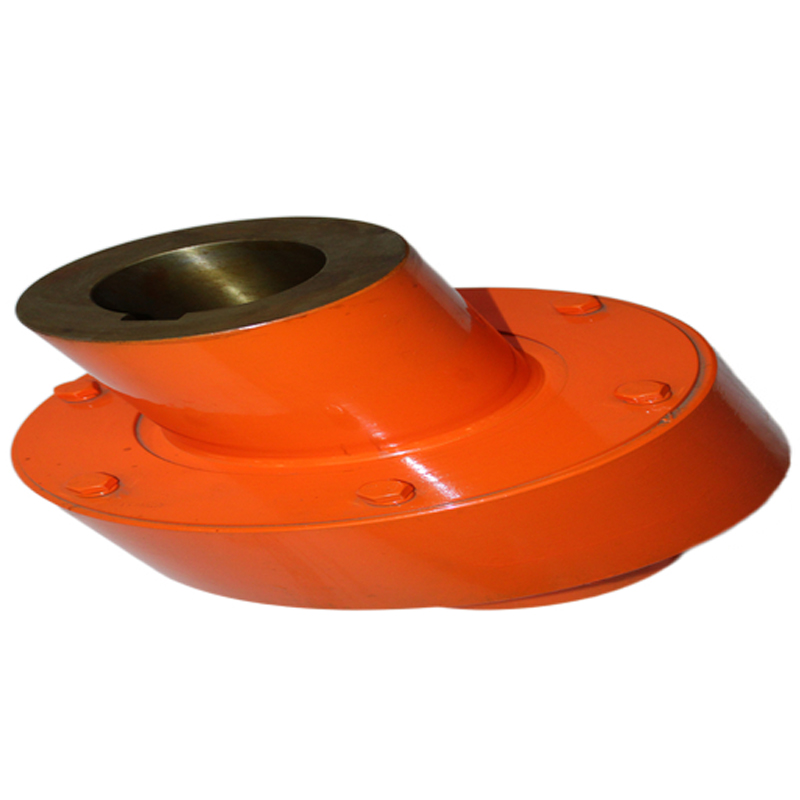

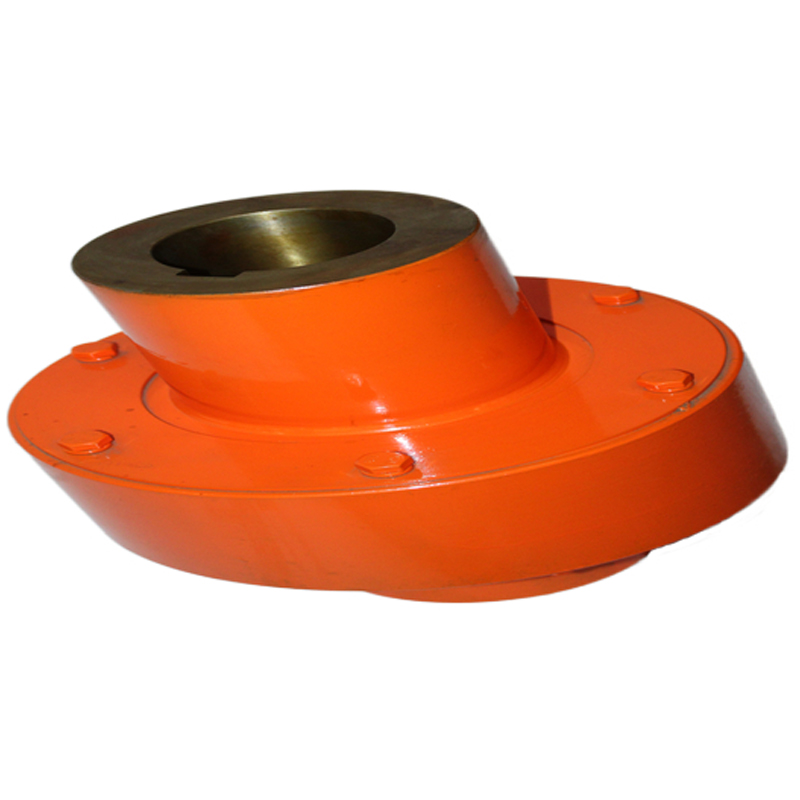

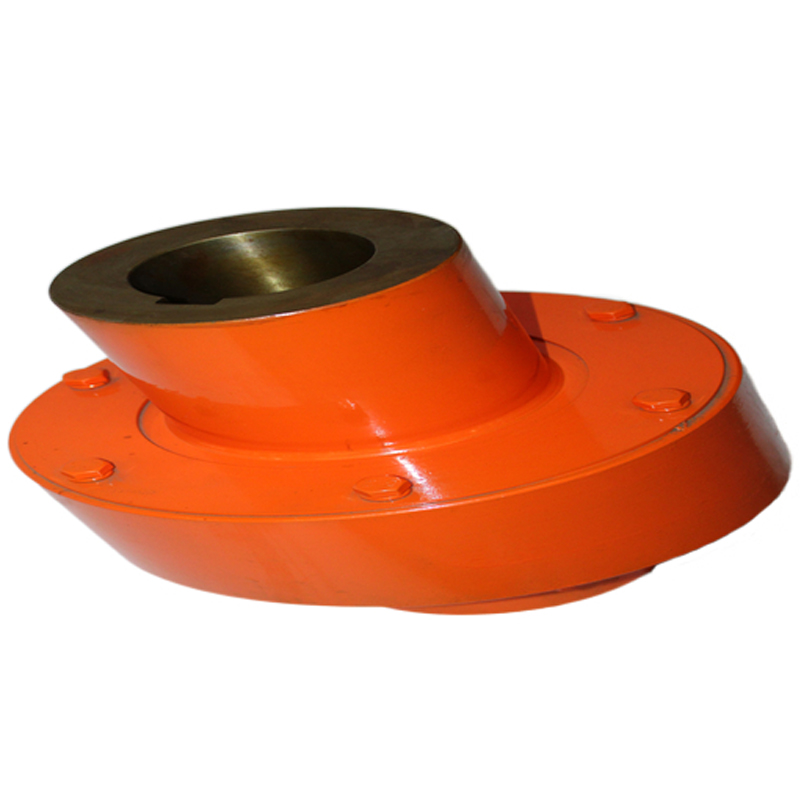

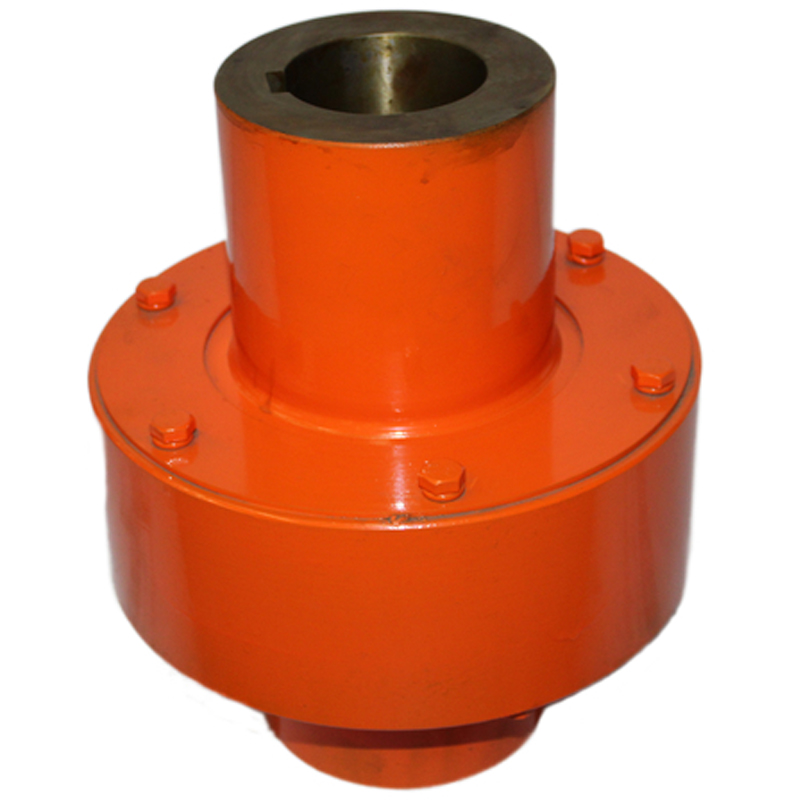

Zl Elastic Pin Tooth Coupling

Rongxing Driving is a professional R&D and manufacturer of brake plum-shaped elastic coupling , Double flange plum blossom elastic coupling. and has won unanimous praise from the majority of users.

INQUIRY

Product Details

Model	Nominal TorqueTn KN • m	Allowable speed [n] r/min	Shaft hole diameter d	Overall length	D	D,	B	S	inertia moment kg. m2	Weight kg
				Y Model丄ModelModel
				L
ZL1	0. 112	5000	12 〜24	27 〜52	76	40	42	2.5	0. 001	1.67
ZL2	0. 25	5000	16 〜32	44 〜82	90	50	50	2.5	0. 003	3. 00
ZL3	0. 63	4500	25 〜42	44 〜112	118	65	70	3.0	0.012	7.31
ZL4	1.8	4200	40 〜60	84 〜142	158	90	90	4	0. 045	16. 20
ZL5	4.5	4000	50 〜80	84 〜172	192	120	90	4	0. 108	27. 02
ZL6	8	3300	60 〜95	107〜172	230	130	112	5	0. 242	40. 89
ZL7	11.2	2900	70 〜110	107〜212	260	160	112	5	0. 443	59. 60
ZL8	18	2500	80 〜130	132〜252	300	190	128	6	0. 908	94. 67
ZL9	25	2300	90 〜150	132〜252	335	220	150	7	1.733	138. 1
ZL10	31.5	2100	100〜170	167〜302	355	245	152	8	2. 422	169.3
ZL11	40	2000	110〜180	167〜302	380	260	172	8	3. 369	203. 1
ZL12	63	1700	130〜200	202〜352	445	290	182	8	6. 524	296.6
ZL13	100	1500	150〜240	202〜410	515	345	218	8	14. 19	469.2
ZL14	125	1400	170〜260	242〜410	560	390	218	8	21.67	621. 7
ZL15	160	1300
