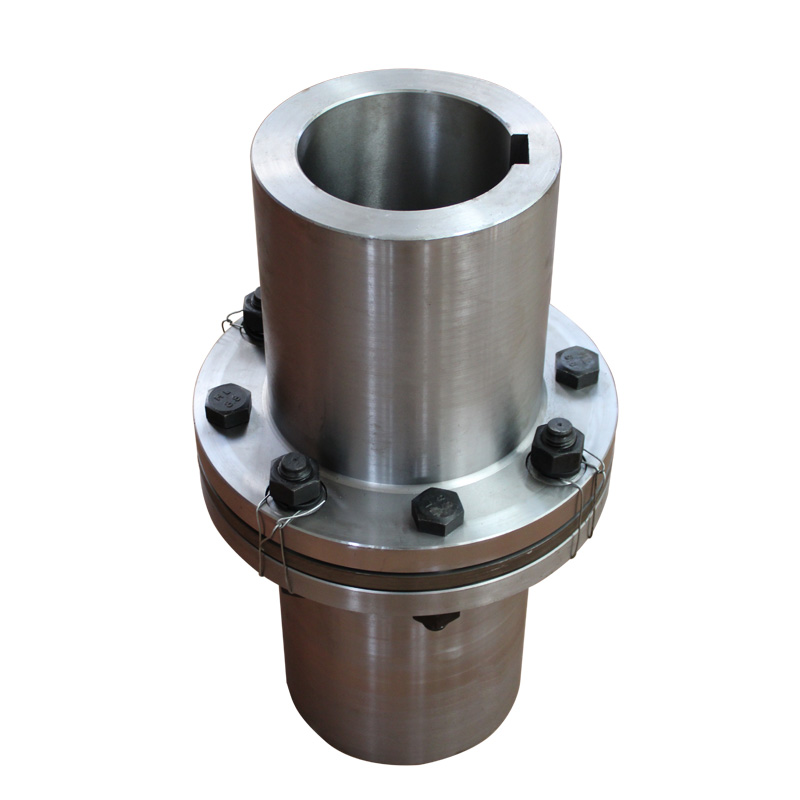

Diaphragm Coupling
Rongxing Driving is a professional R&D and manufacturer of couple elastic , elastic coupling , elastic sleeve pin coupling. and has won unanimous praise from the majority of users.
INQUIRY

Product Details




                      JZM Heavy Machinery Diaphragm Coupling Main Parameters And Dimensions                             mm

ModelNominal Torque TnN • mAllowable Speed[n] r/minShaft Hole DiameterShaft Hole Length  LDD,STwisting Stiffness X106N • m/radInertia Moment kg • m2Weight kg
dY J,
JZM1401070014 〜2827 〜62803980. 370. 00261.37
JZM263930020 〜3838 〜82925380. 450. 00732. 65
JZM3100840025 〜4544 〜1121026380. 560.0134.8
JZM4250670030 〜5560 〜11212877110.810. 0427. 64
JZM5500590035 〜6560 〜14214591111.20. 0679.4
JZM6800510040 〜7584 〜142168105141.420. 16517. 15
JZM71000475045 〜8084 〜172180112151.90. 2724.5
JZM81600430050 〜8584 〜172200120152. 350. 38729.4
JZM92000420055 〜9084 〜172205120202. 70.4130. 38
JZM102500400055 〜9084 〜172215128203. 020.5133.9
JZM113150365060 〜95107〜172235132233. 460. 7040. 18
JZM124000340060 〜100107〜212250145233. 671. 1355. 96
