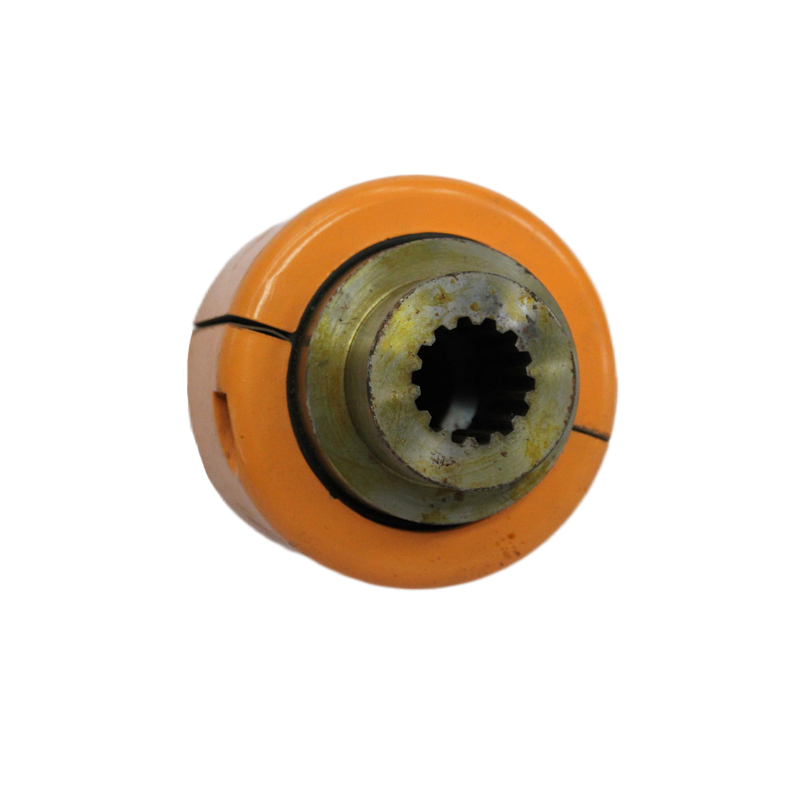

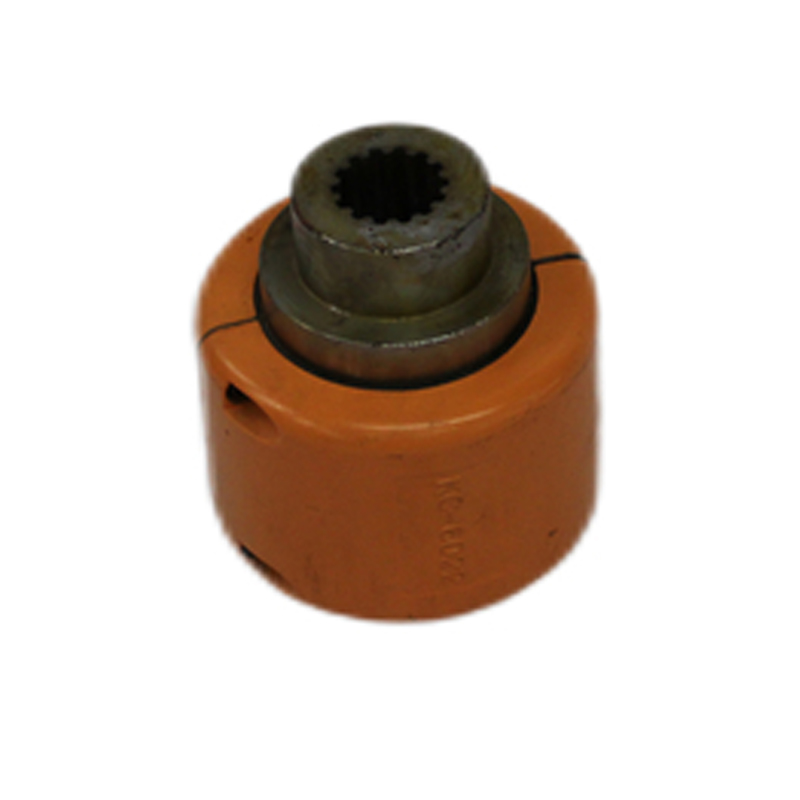

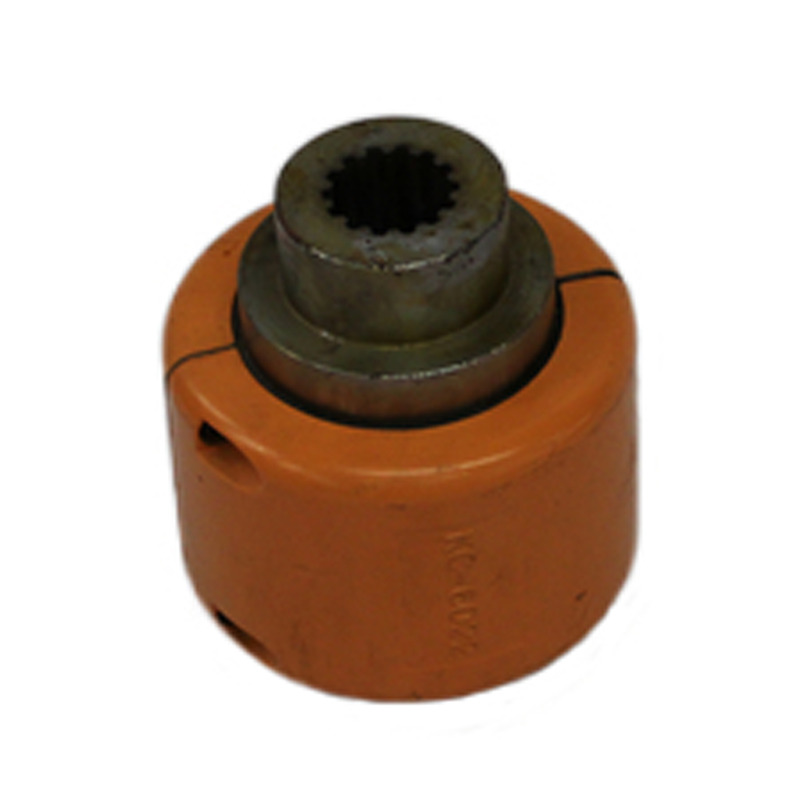

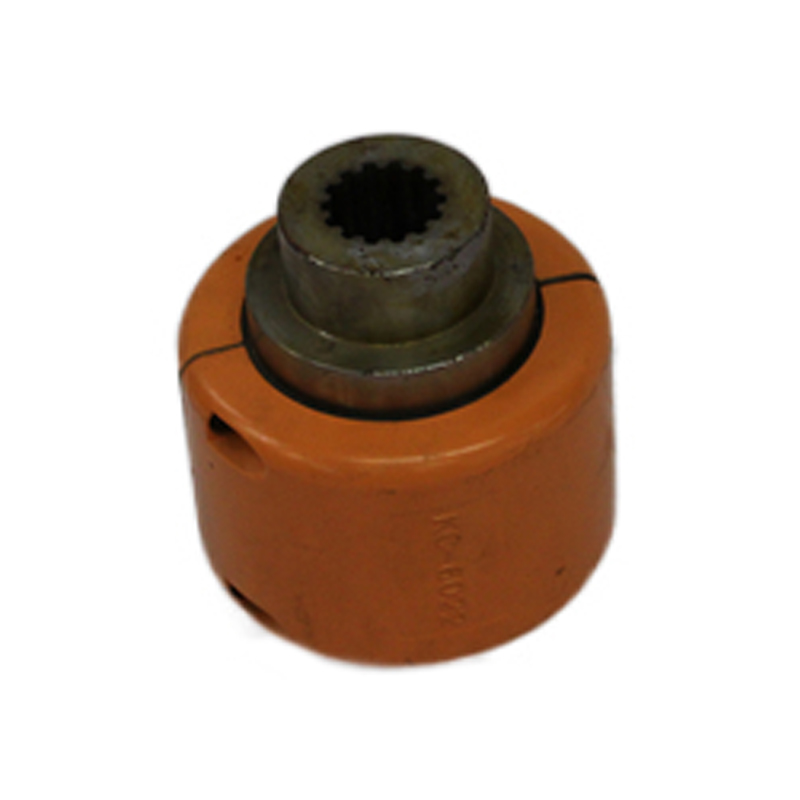

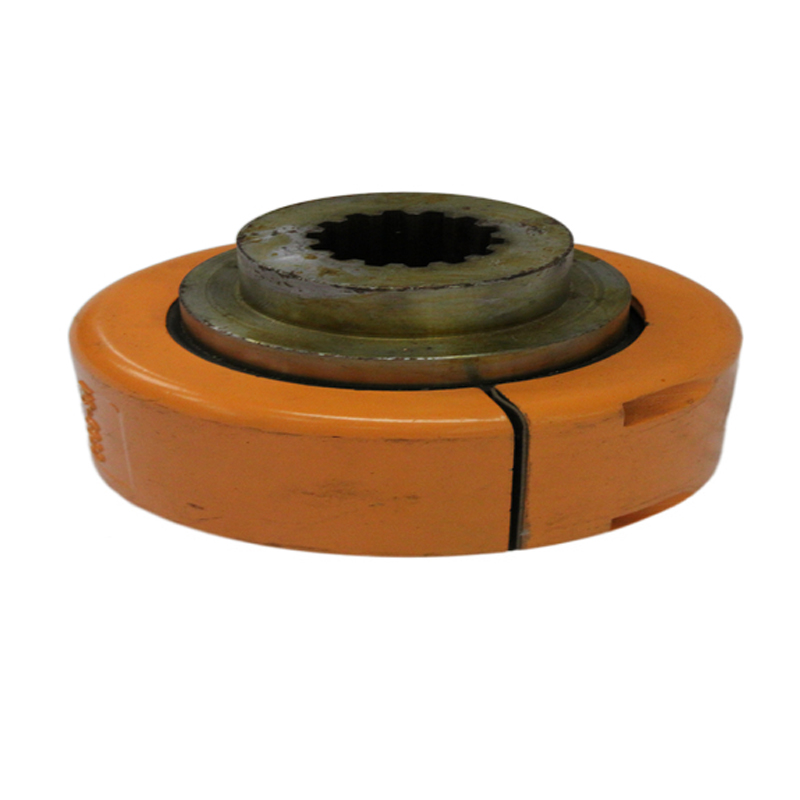

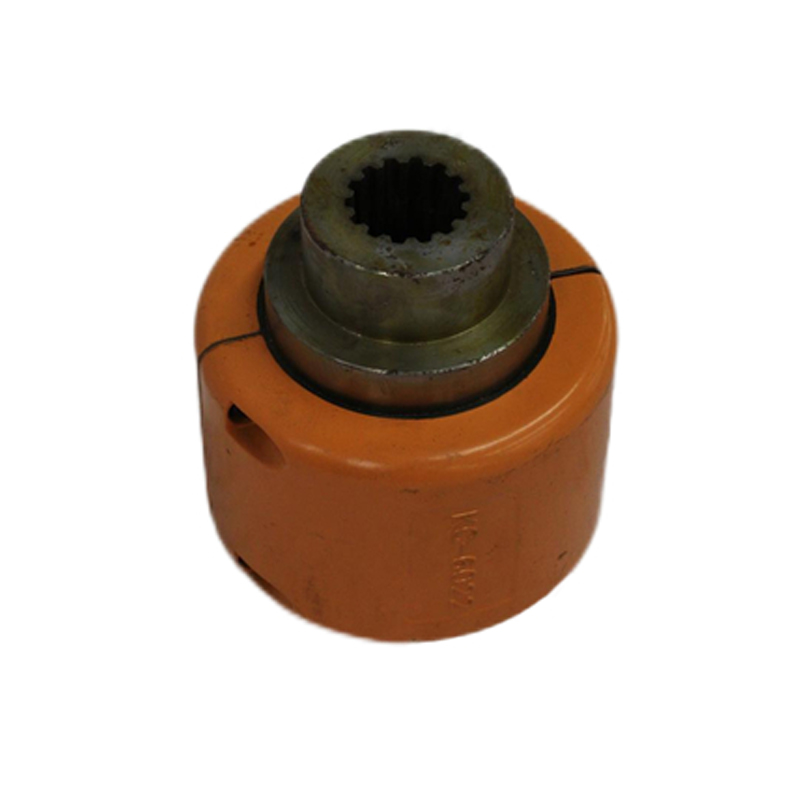

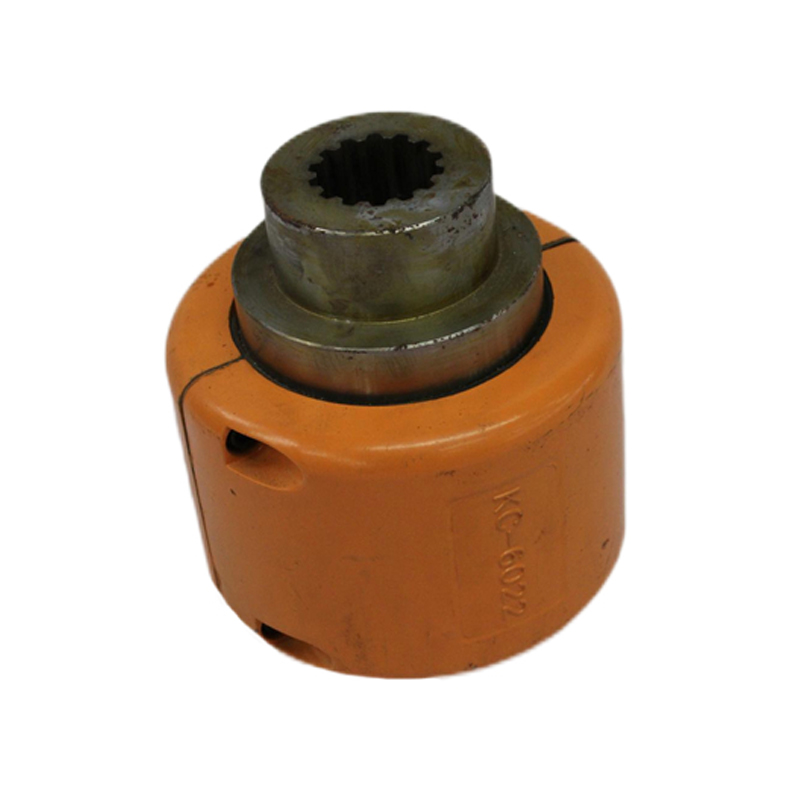

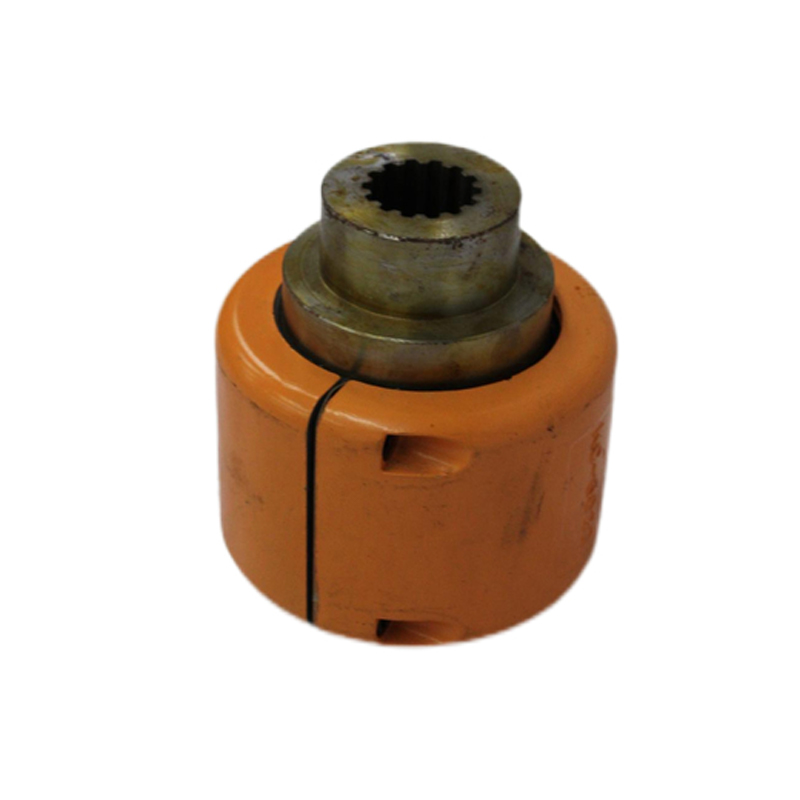

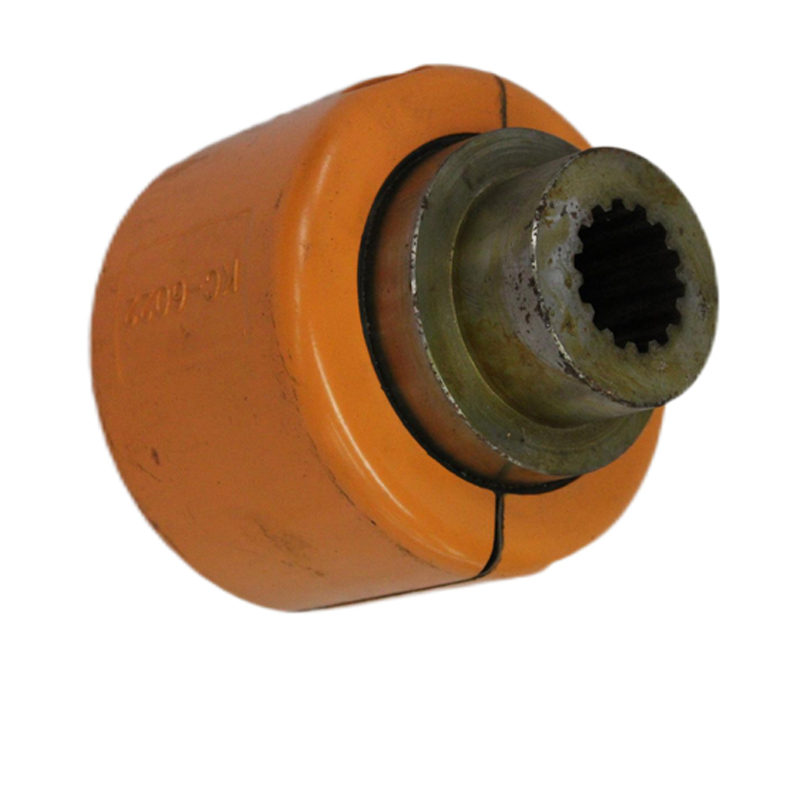

Chain Coupling

Rongxing Driving is a professional R&D and manufacturer of chain coupling , GL type roller chain coupling , roller chain coupling. and has won unanimous praise from the majority of users.

INQUIRY

Product Details

GL Type Coupling Main Parameters And Dimensions mm
Model	Nominal Torque TnN • m	Allowable Speed [n] r/min		Shaft Hole Diameterd	Shaft Hole Length	Chain No.	Size					Weight kg
		Allowable Speed [n] r/min			Y 丄J1		D	bn	S	D,	ShellDkXLkmax
		No Cover	WithCover		L		D	bn	S	D,	ShellDkXLkmax
GL1	40	1400	4500	16 〜20	38 〜52	TG95X2	51.06	5.3	4.9	32	70X70	0.5
GL2	63	1250	4500	19 〜24	38 〜52	TG95X2	57. 08	5.3	4.9	38	75X75	0.8
GL3	100	1000	4000	20 〜25	38 〜63	TG127X2	68. 88	7.2	6.7	40	85X80	1.2
GL4	160	1000	4000	24 〜32	44 〜82	TG127X2	79.61	7.2	6.7	50	95X88	2
GL5	250	800	3150	28 〜40	60 〜112	TG158X2	94. 46	8.9	9.2	60	112X100	3.5
GL6	400	630	2500	32 〜50	60 〜112	TG158X2	116. 57	8.9	9.2	80	140X105	5
GL7	630	630	2500	40 〜60	84 〜142	TG190X2	127. 78	11.9	10.9	85	150X122	8
GL8	1000	500	2240	45 〜70	84 〜142	TG254X2	154. 33	15	14.3	100	180X135	12
GL9	1600	400	2000	50 〜80	84 〜172	TG254X2	186.5	15	14.3	132	215X145	20
GL10	2500	315	1600	65 〜90	107〜172	TG137X2	213. 02	18	17.8	145	245X165	27
GL11	4000	250	1500	75 〜100	107〜212	TG381X2	231.49	24	21.5	155	270X195	40
GL12	6300	250	1250	85 〜120	132〜212	TG444X2	270. 08	24	24.9	180	310X205	60
GL13	10000	200	1120	100〜140	167〜252	TG508X2	340.8	30	28.6	230	380X230	88
GL14	16000	200	1000	120〜160	167〜302	TG508X2	405. 22	30	28.6	280	450X250	152
GL15	25000	200	900	140〜190	202〜352	TG635X2	466. 25	36	35.6	320	510X285	235

Note: Weight And Moment Of Inertia Do Not Include Housing.
