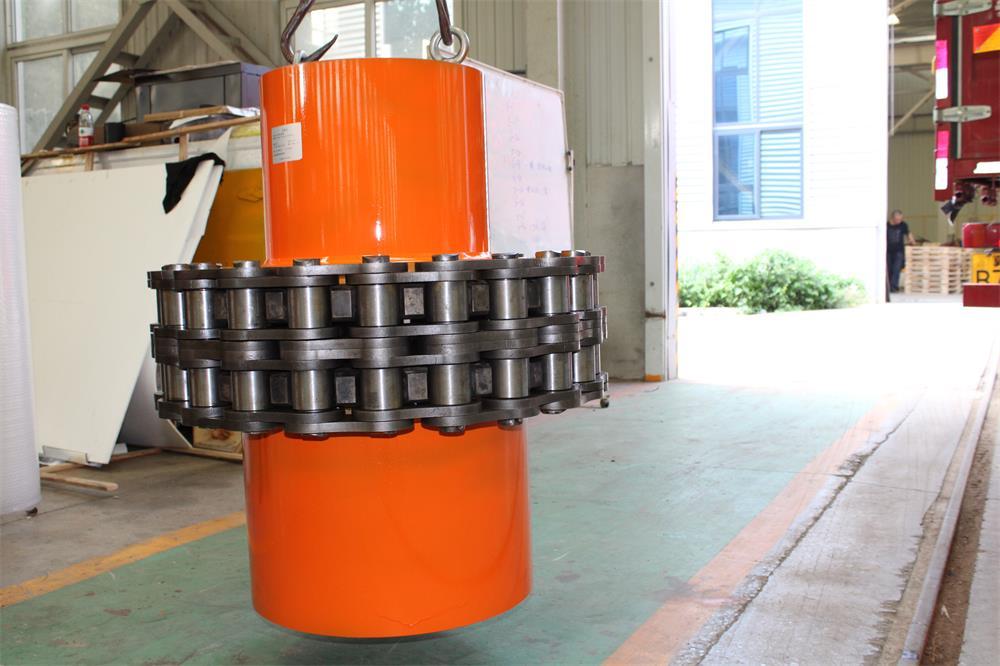

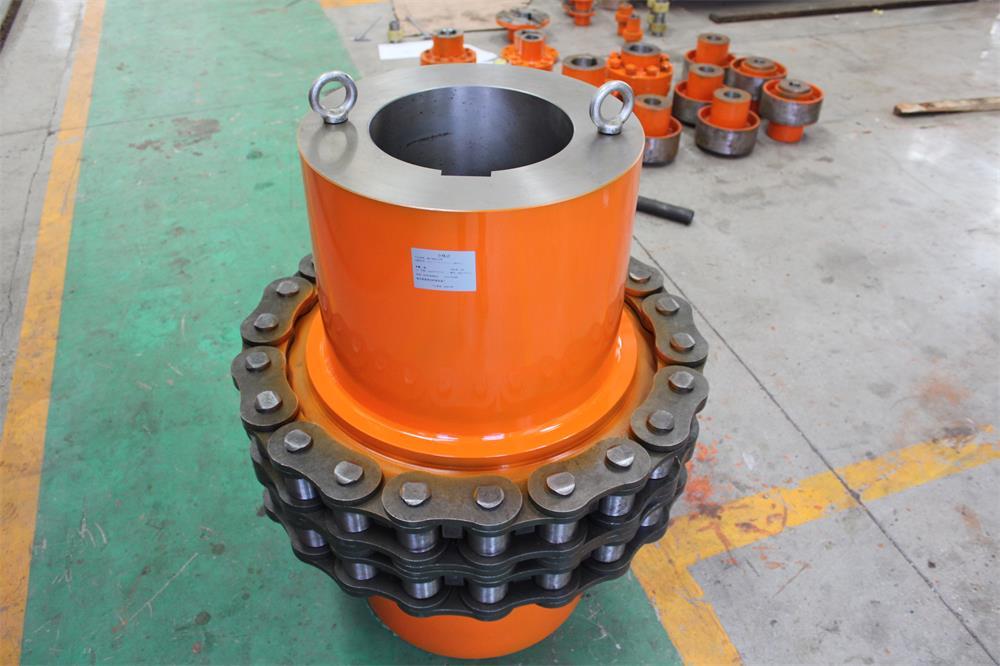

Chain coupling is a coupling with superior performance, called roller chain coupling in full, and is widely used in fluid machinery

and transportation equipment. There are two standards commonly used in the domestic market. The first one comes from the

Japanese standard [JIS B 1456], which is our common KC series coupling. The biggest feature of this standard is that the length of

the shaft hole is standardized, that is, the shaft hole length is standardized. The hole length is fixed. The second standard is the

national standard [GB6069], which is the GL series roller chain coupling. The two standard structures are similar and both can be

equipped with dustproof covers.

The roller chain coupling has a simple structure (composed of four parts), easy assembly and disassembly, no need to move the

two connected axes during disassembly, compact size, light weight, certain compensation capabilities, low installation accuracy

requirements, and reliable operation , longer life, lower cost and other advantages
