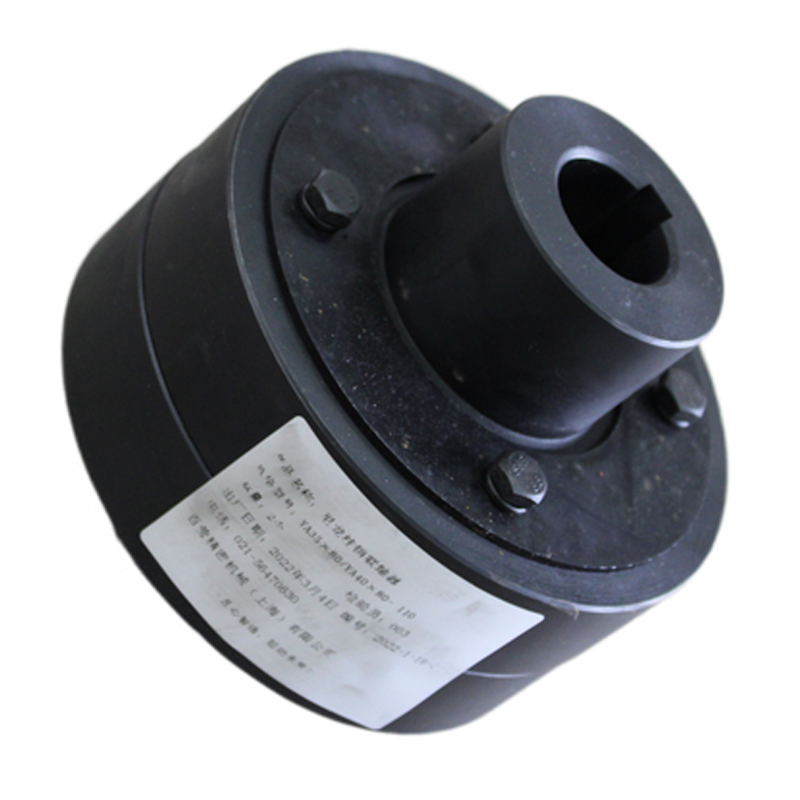

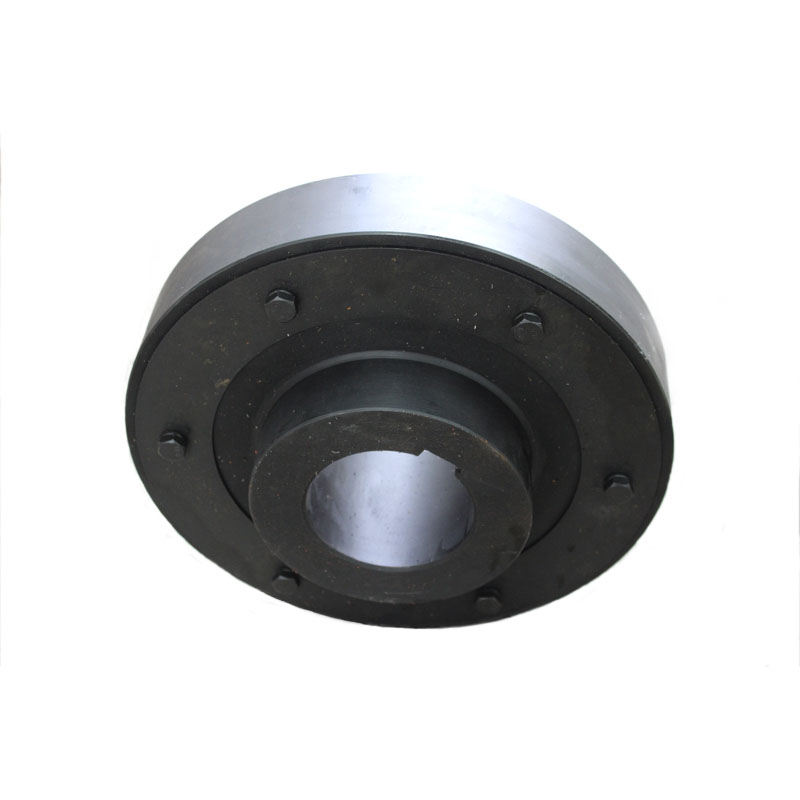

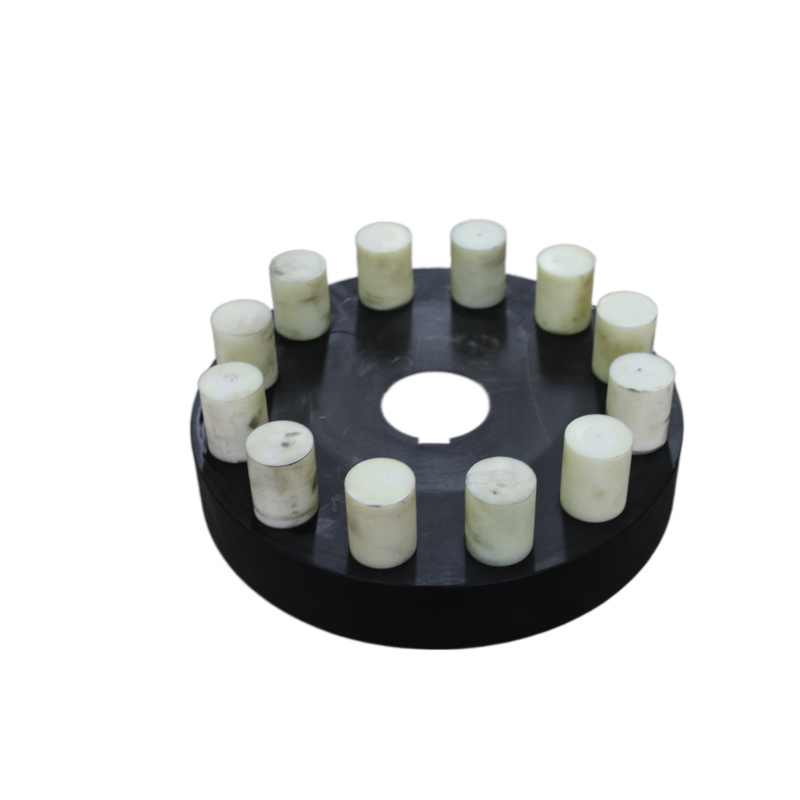

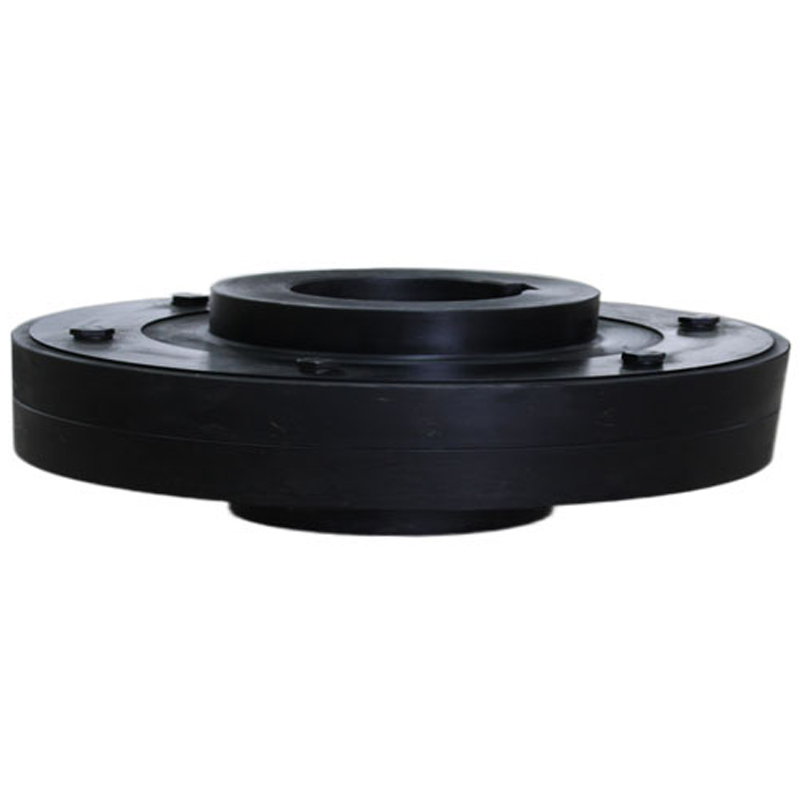

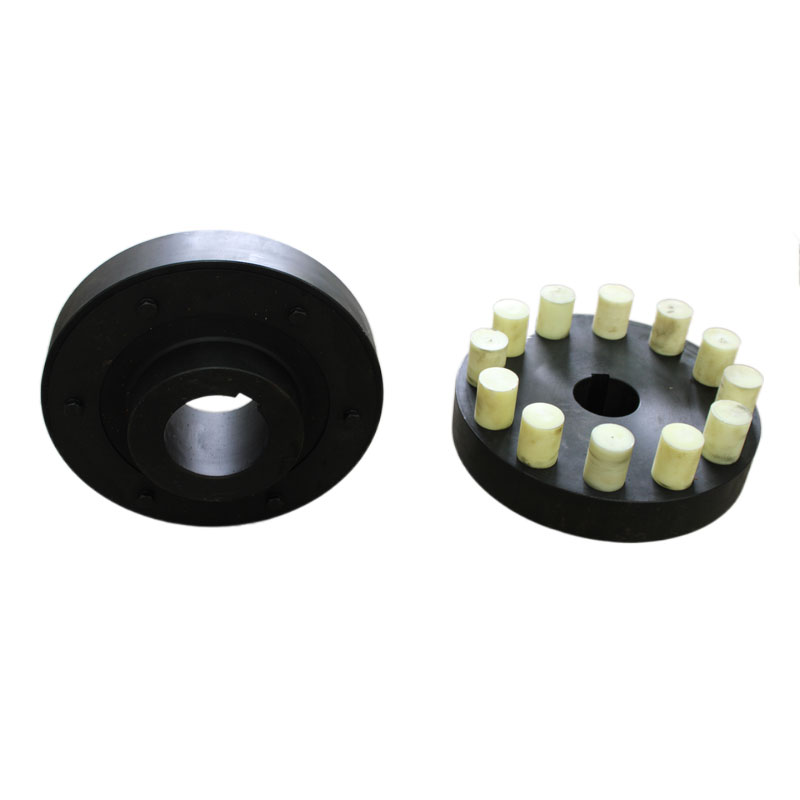

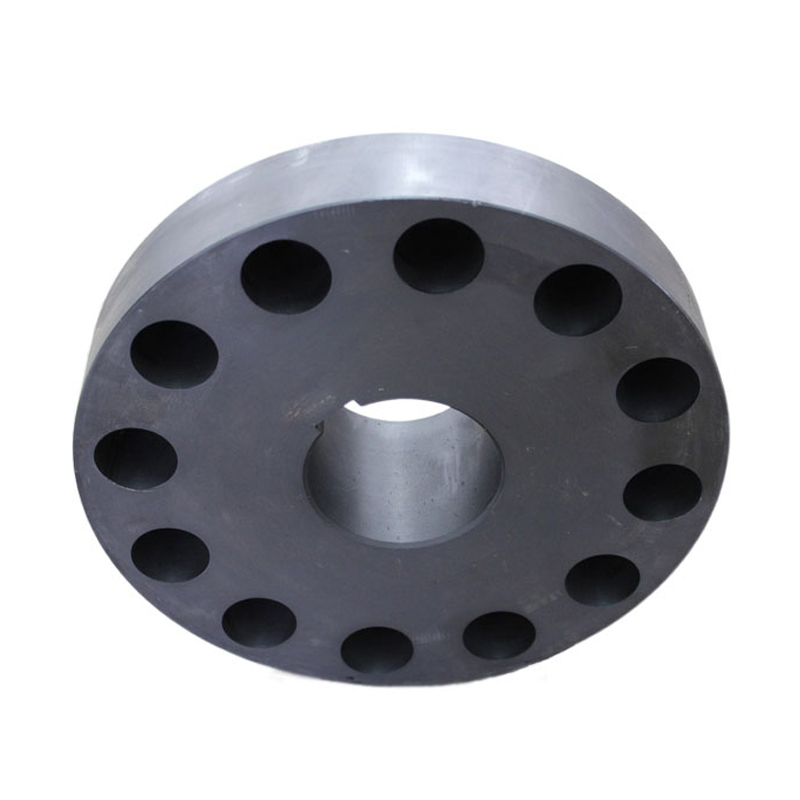

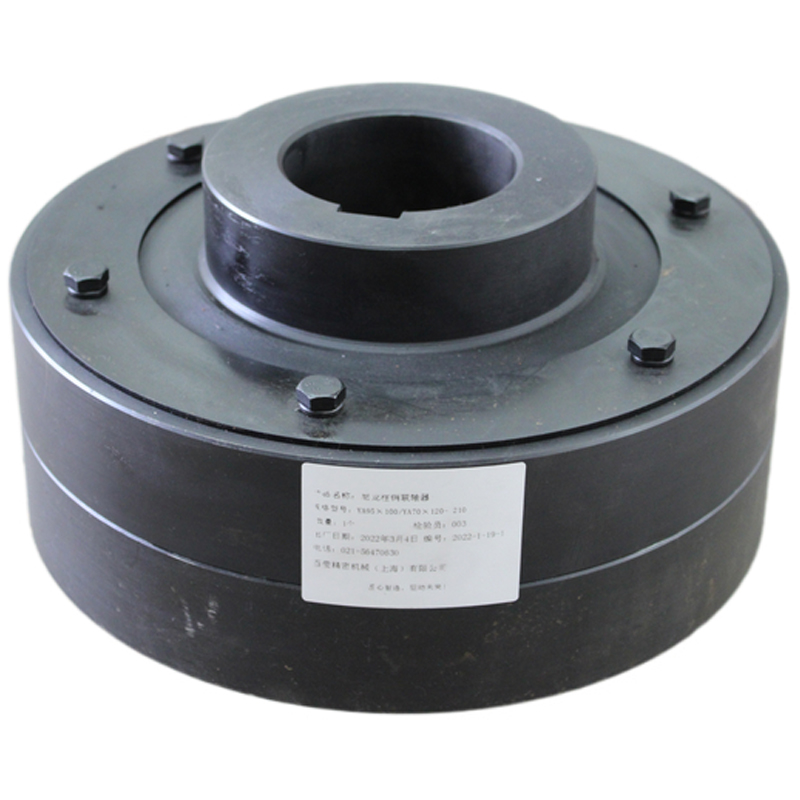

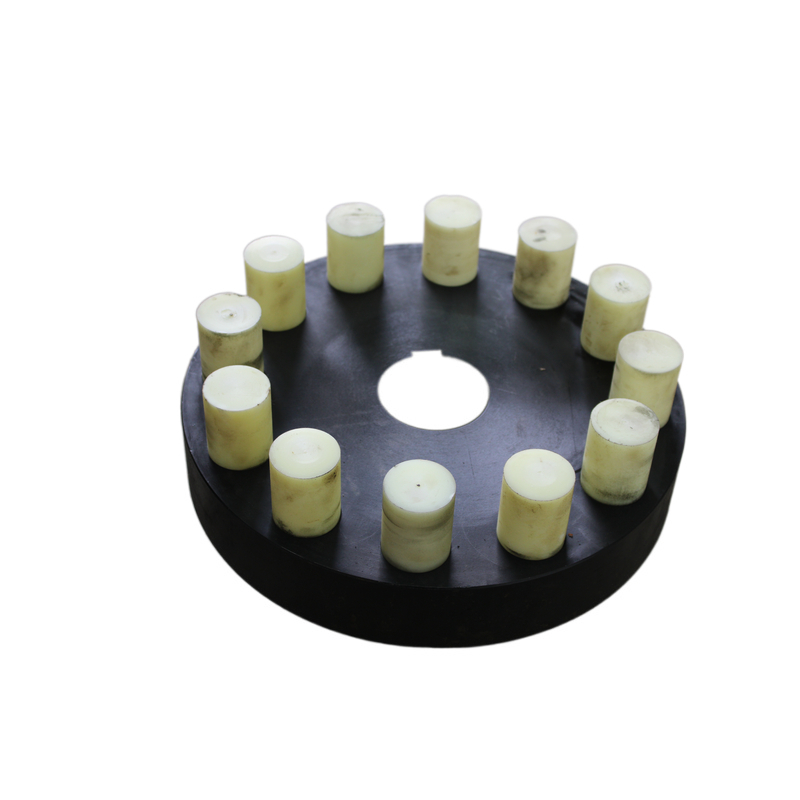

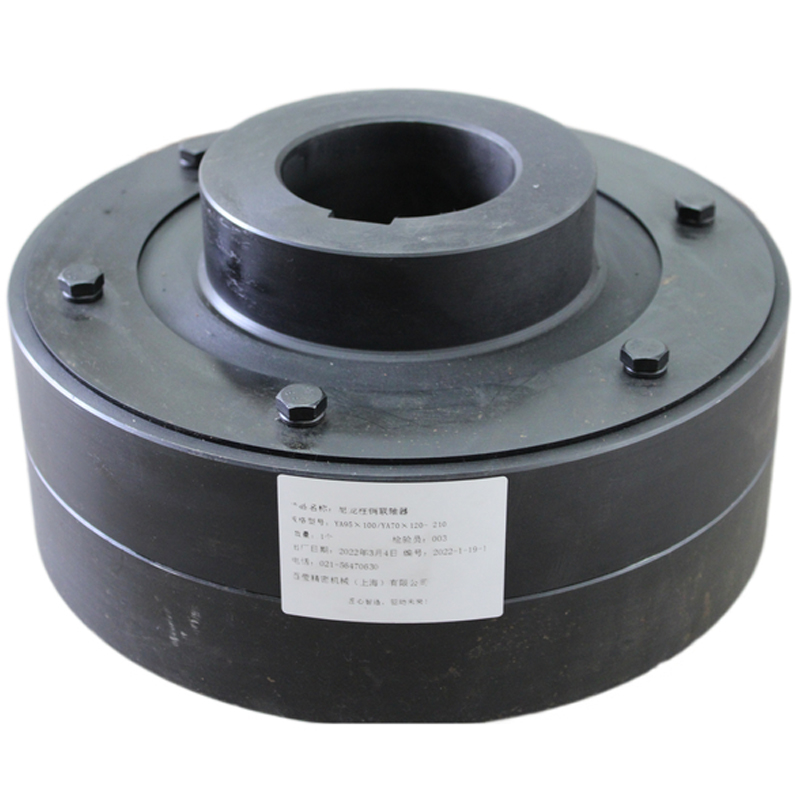

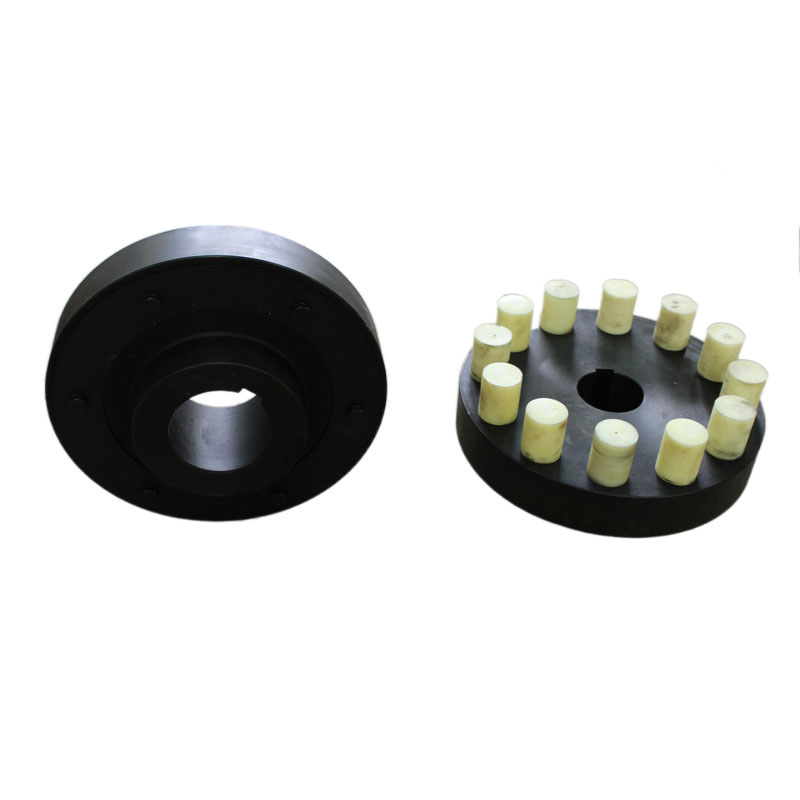

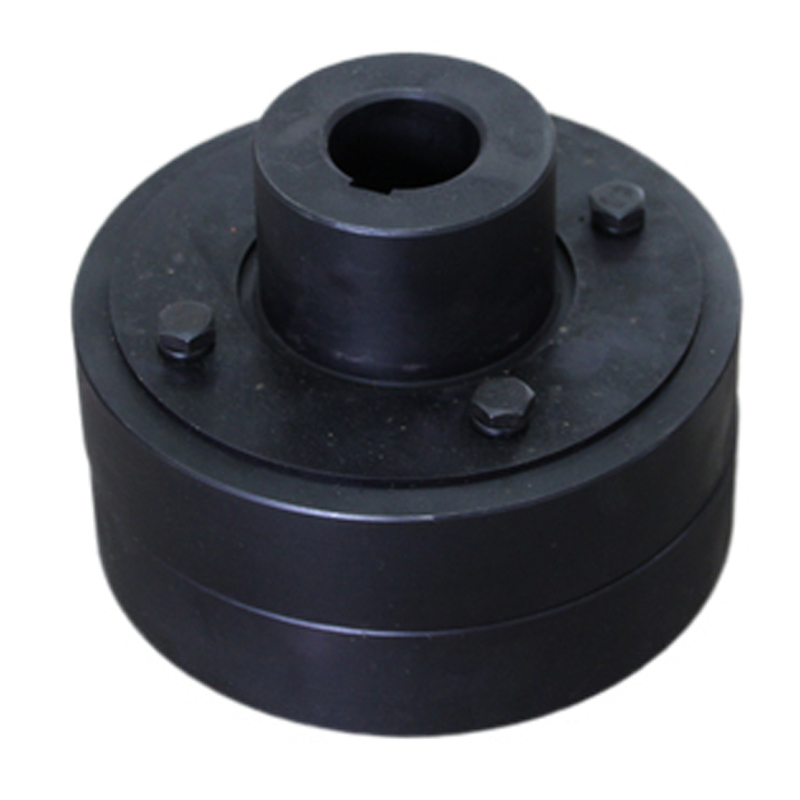

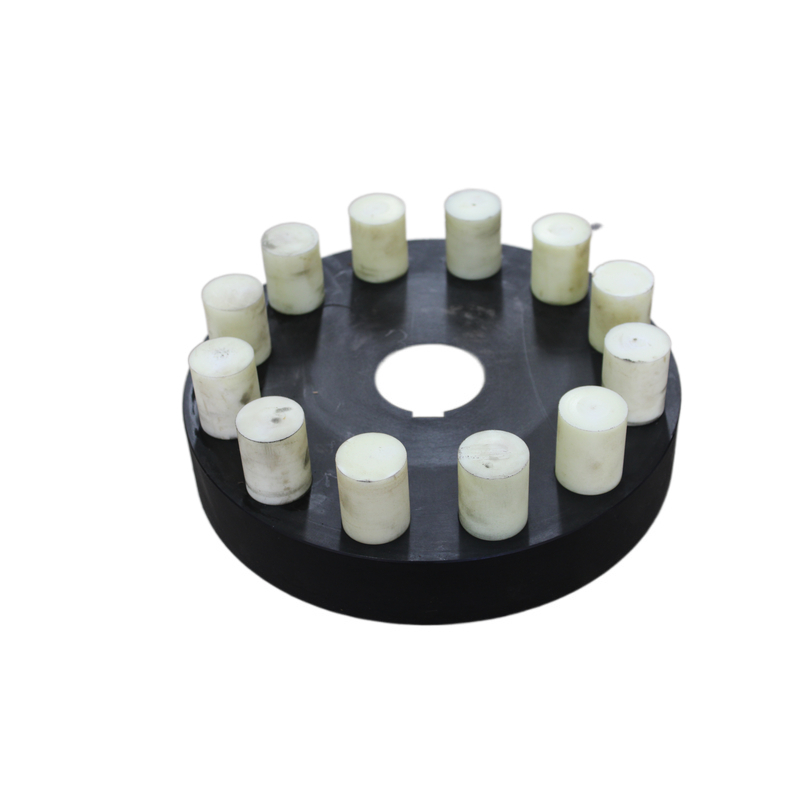

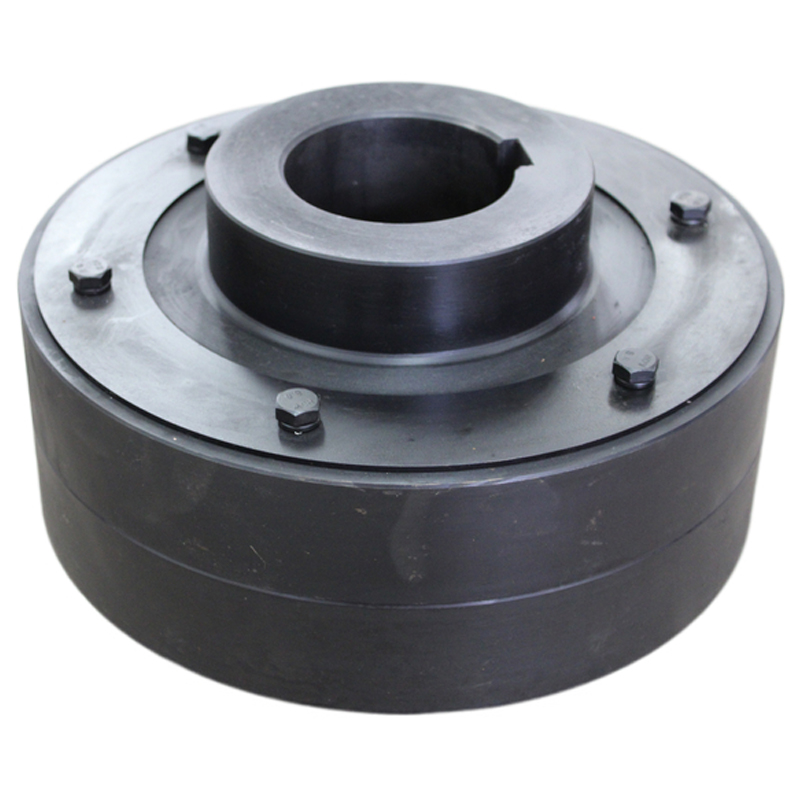

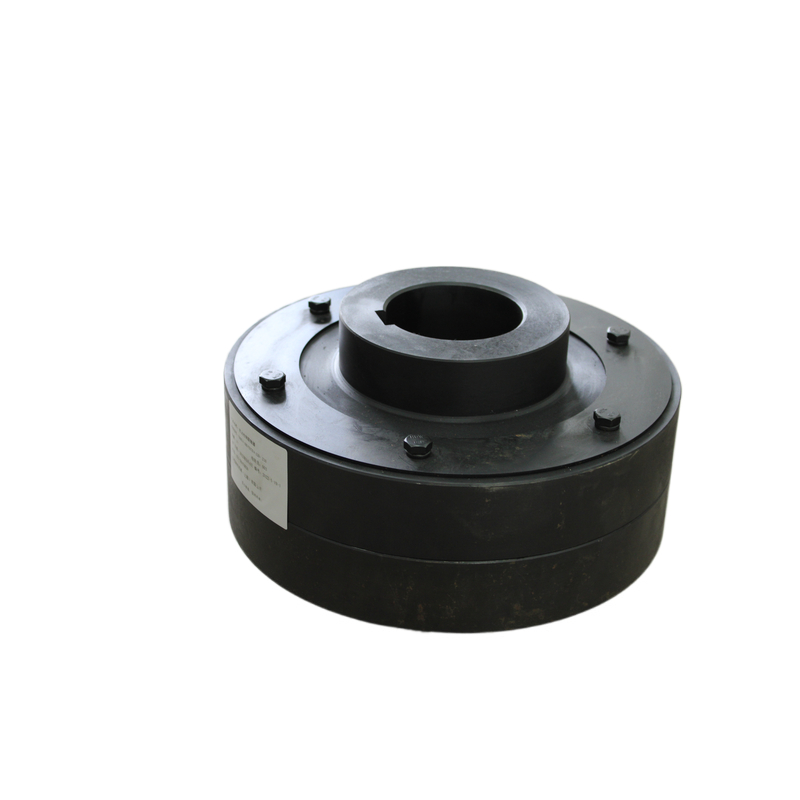

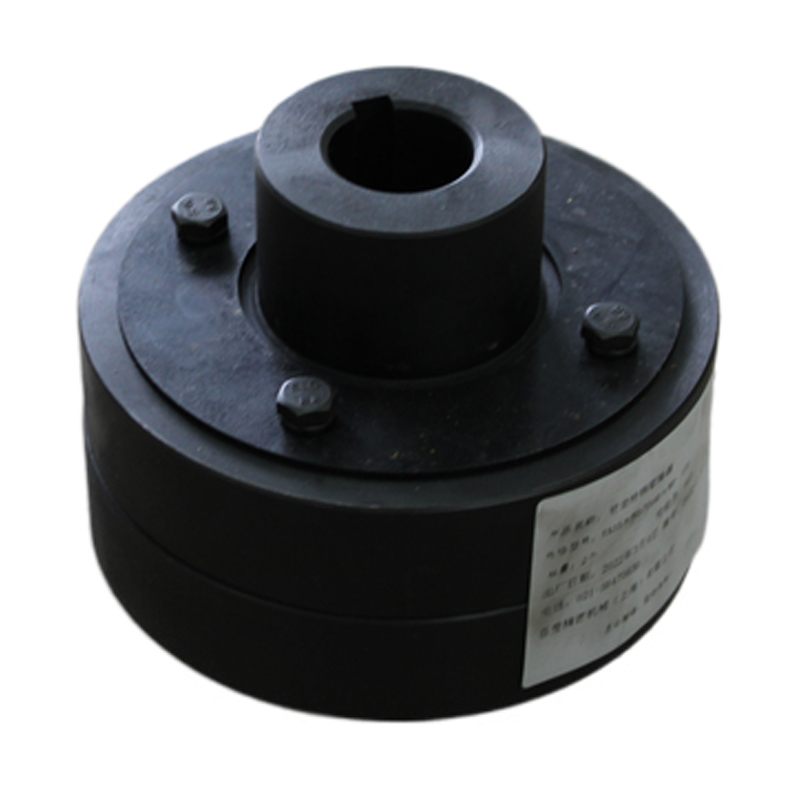

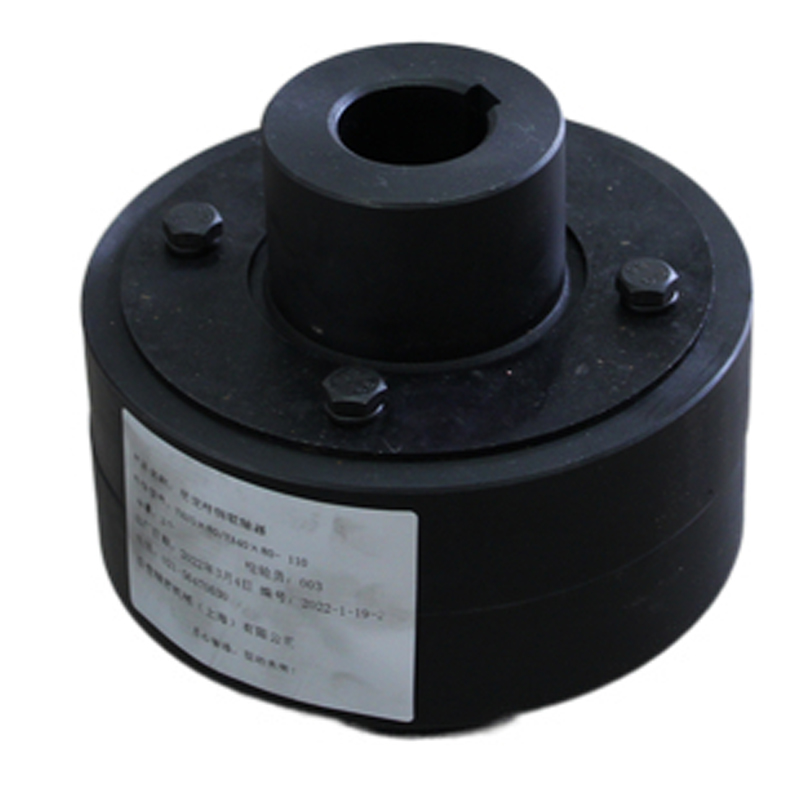

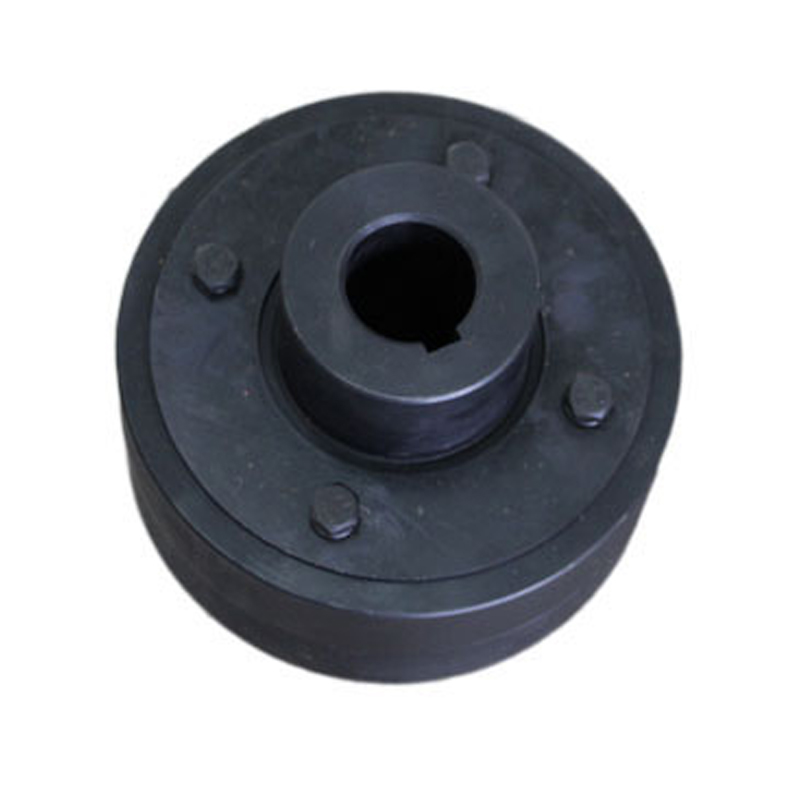

HL Type Elastic Pin Coupling

HL Type Elastic Pin Coupling Main Parameters And Dimensions mm

Model	Nominal Torque Tn N • m	Allowable Speed [n] r/mi n	SHAFT HOLE DIAMETER d dz	Shaft Hole Length	Size			Weight kg
				Y J J, Z Model	D	D,	S
				L, L	D	D,	S
HL1	250	8500	12 〜24	27 〜52	90	40	2.5	2
HL2	560	6300	20 〜35	38 〜82	120	55	2.5	5
HL3	1250	4750	30 〜48	60 〜112	160	75	2.5	8
HL4	2500	3870	40 〜63	84 〜142	195	100	3	22
HL5	3150	3450	50 〜75	84 〜142	220	120	3	30
HL6	6300	2720	60 〜85	107〜172	280	140	4	53
HL7	11200	2360	70 〜110	100〜212	320	170	4	98
HL8	16000	2120	80 〜125	132〜212	360	200	5	119
HL9	22400	1850	100〜140	167〜252	410	230	5	197
HL10	35500	1600	110〜180	167〜302	480	280	6	322
HL11	50000	1400	130〜220	202〜352	540	340	6	520
HL12	80000	1220	100〜180	242〜410	630	400	7	714
HL13	125000	1080	190〜300	282〜470	710	465	8	1057
HL14	180000	950	240〜340	330〜550	800	530	8	1956
Remark ：HL12、HL13、HL14 When using Z-shaped holes, check whether the counterbore is allowed.
